TwentyTwo Dual.
Twice the power. Zero compromise.
The Twentytwo Dual delivers twice the charging power in a single, streamlined unit—designed to maximise efficiency, support dual EV usage, and future-proof your workplace or commercial site with smart, scalable charging that works as hard as you do.
TwentyTwo Dual.
-

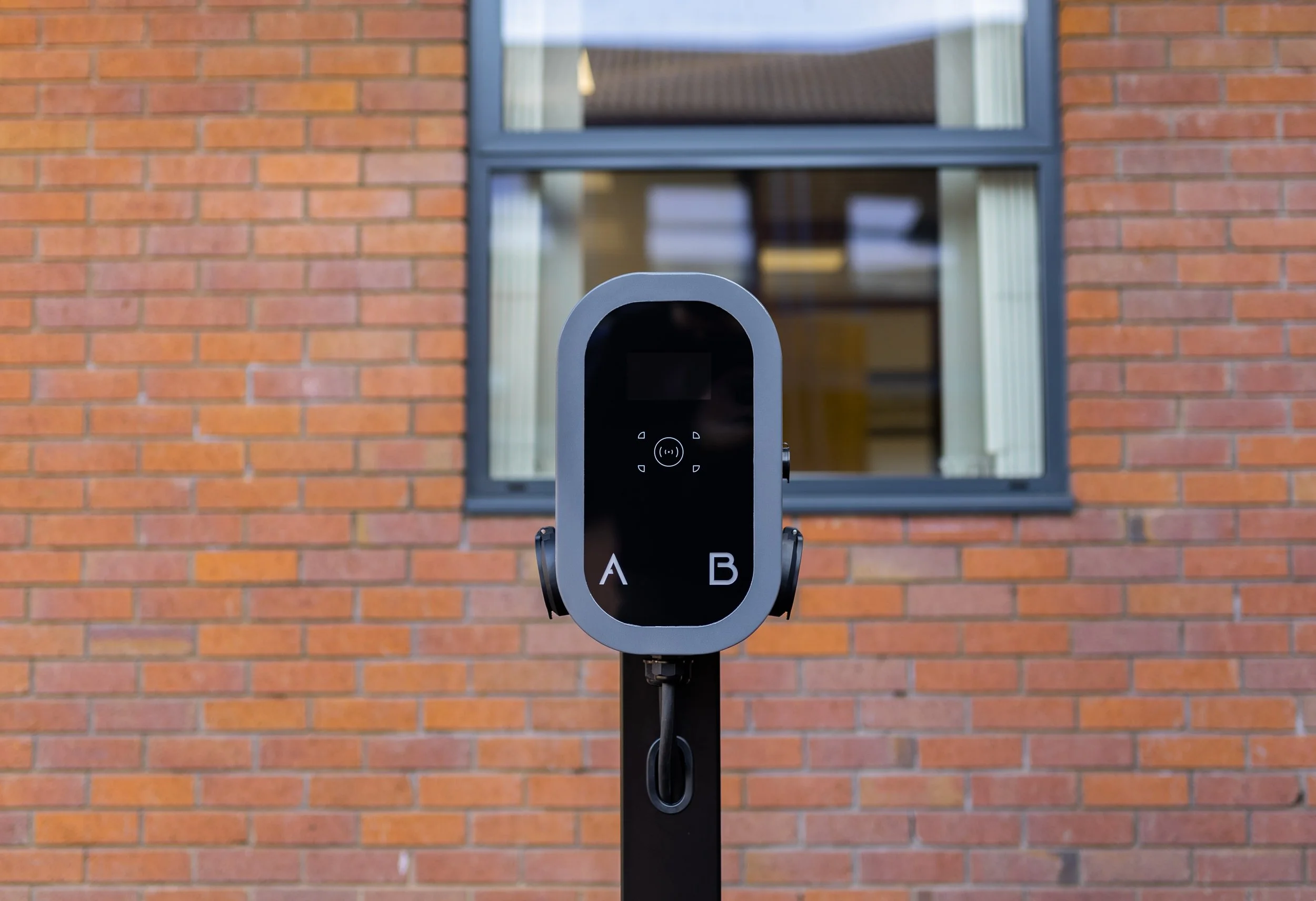

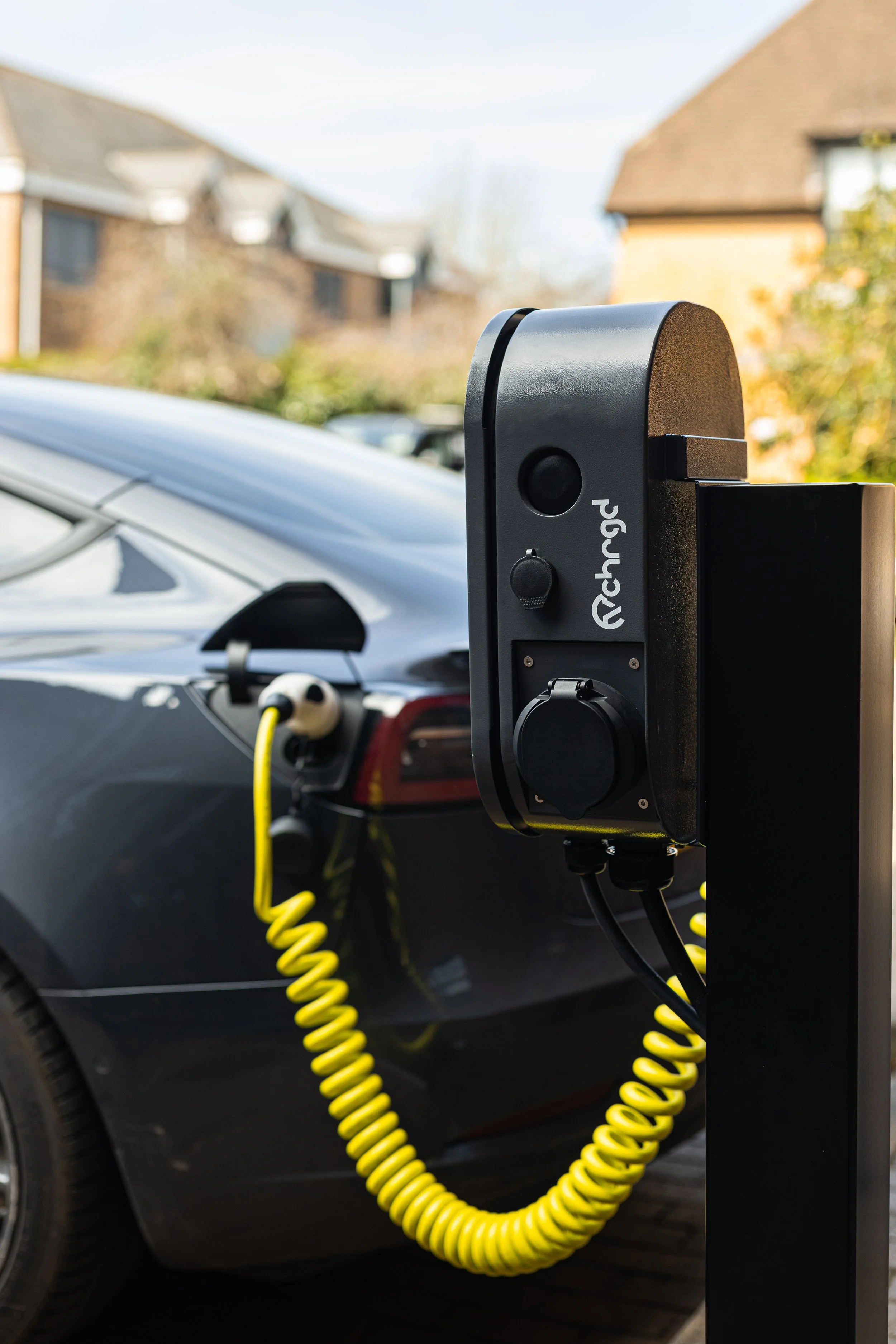

The VCHRGD TwentyTwo Dual delivers simultaneous dual-socket EV charging at up to 22kW per outlet, making it the perfect solution for workplaces, fleets, and commercial destinations. Designed for high-demand environments, it maximises charging availability while optimising energy distribution, ensuring both sockets deliver reliable performance without compromise.
-
Built for the UK climate, the VCHRGD TwentyTwo Dual combines IP-rated weather protection, robust construction, and premium components to guarantee long-lasting reliability in all conditions. Its heavy-duty design ensures years of dependable EV charging for both public and private applications, reducing maintenance and downtime.
-
The VCHRGD TwentyTwo Dual is OCPP 1.6J compliant and comes with WiFi, 4G, and Ethernet as standard, enabling seamless integration with leading back-office platforms. With features such as RFID authentication, remote monitoring, and smart charging controls, it provides a fully connected EV charging experience for operators and drivers alike.
Charge your business by adding the VCHRGD TwentyTwo to your setup
The VCHRGD TwentyTwo is a commercial-grade powerhouse you can rely on 365 days a year. Engineered in the UK and built to withstand everything from torrential rain to freezing temperatures, it’s designed to perform in even the harshest British conditions—day in, day out.
Fully OCPP-compliant, the TwentyTwo integrates effortlessly with your chosen back-end system or charge point operator. Whether you're working with a national CPO, a fleet management platform, or your own internal software, it gives you the flexibility to operate your charging infrastructure your way—complete with access control, dynamic load balancing, usage reports, and remote diagnostics.
And it’s not just functional—it’s customisable too. From full vinyl wraps and branded faceplates to personalised screensavers and printed collateral, the VCHRGD TwentyTwo can be tailored to reflect your brand across every site.
Whether you're deploying a single charger or rolling out a full commercial network, the TwentyTwo is built for scale, reliability, and seamless integration.
Thinking of having a charger installed but have some questions? Give us a call!
Double Down. Power Up.
-
Configurable outputs of 2x22kW or 2x11kW for 3-phase inputs and 7.4kW split for 1-phase supply, simply set up to meet your site needs.
-
Hard wired dynamic load balancing with 3x CT's provided in box. Wireless solutions available through select CPOs
-
2x MID metered channels and touch screen output to ensure the highest level of metering compliance for billing and public installations.
-
Simplified installation and reduced project costs, through built in PEN protection, 6mA + 30Ma RCM, overvoltage, overcurrent, over temperature detection and much more.
-
Magnetic anti-tamper switch built in for case open detection and emergency charging session cut-off. Case entry protected by key and lock mechanism and fully compliant with EVSCP regulations
-
Built-in RFID reader for easy charge card registration and local charge authorisation either as a standalone authorisation or via your chosen CPO
-
Robust and corrosion resistant powder coated aluminium casing. Chargers built to last in any environment for as long as you need
-

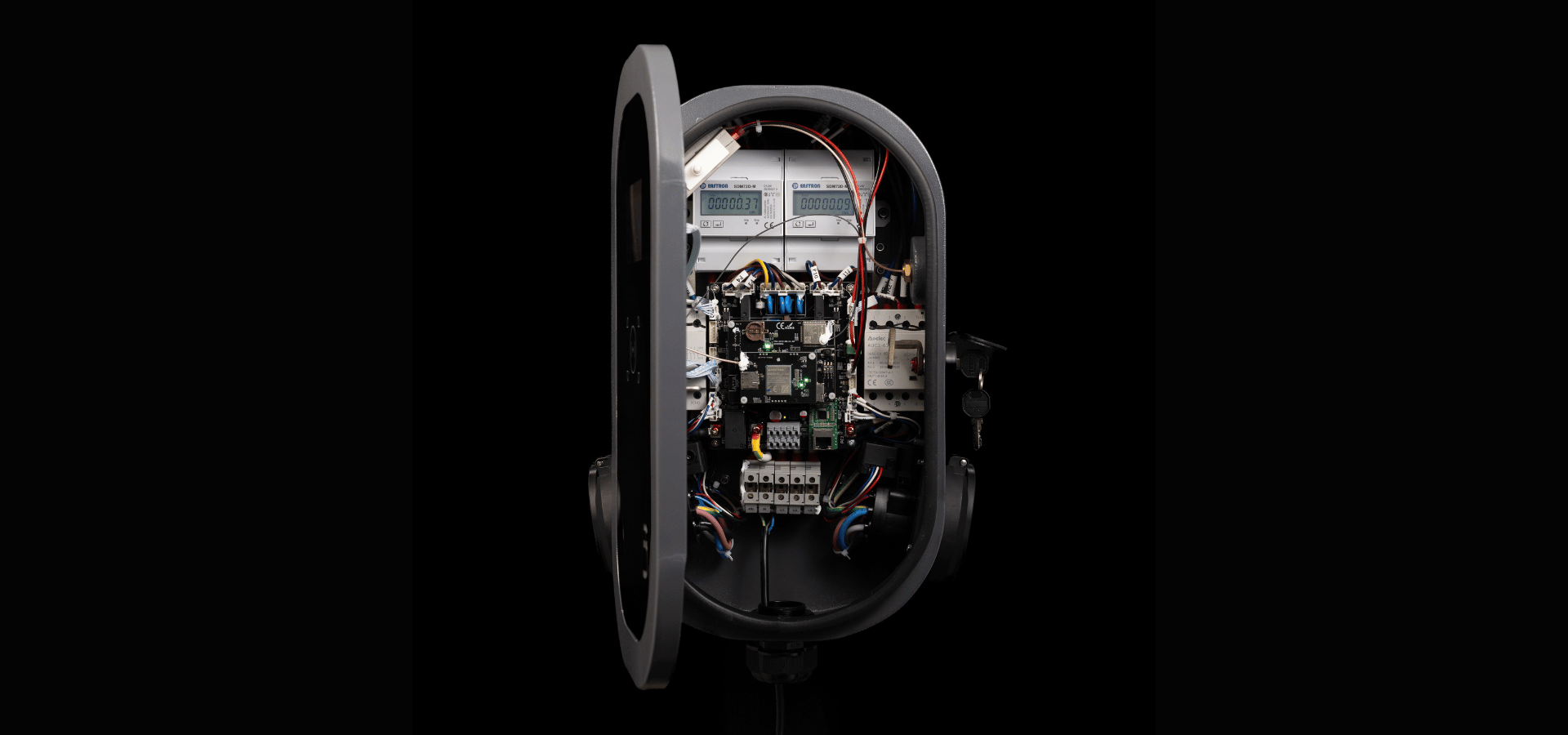

Hinged front door and clearly laid out internal wiring termination for a quick & easy install and maintenance
-

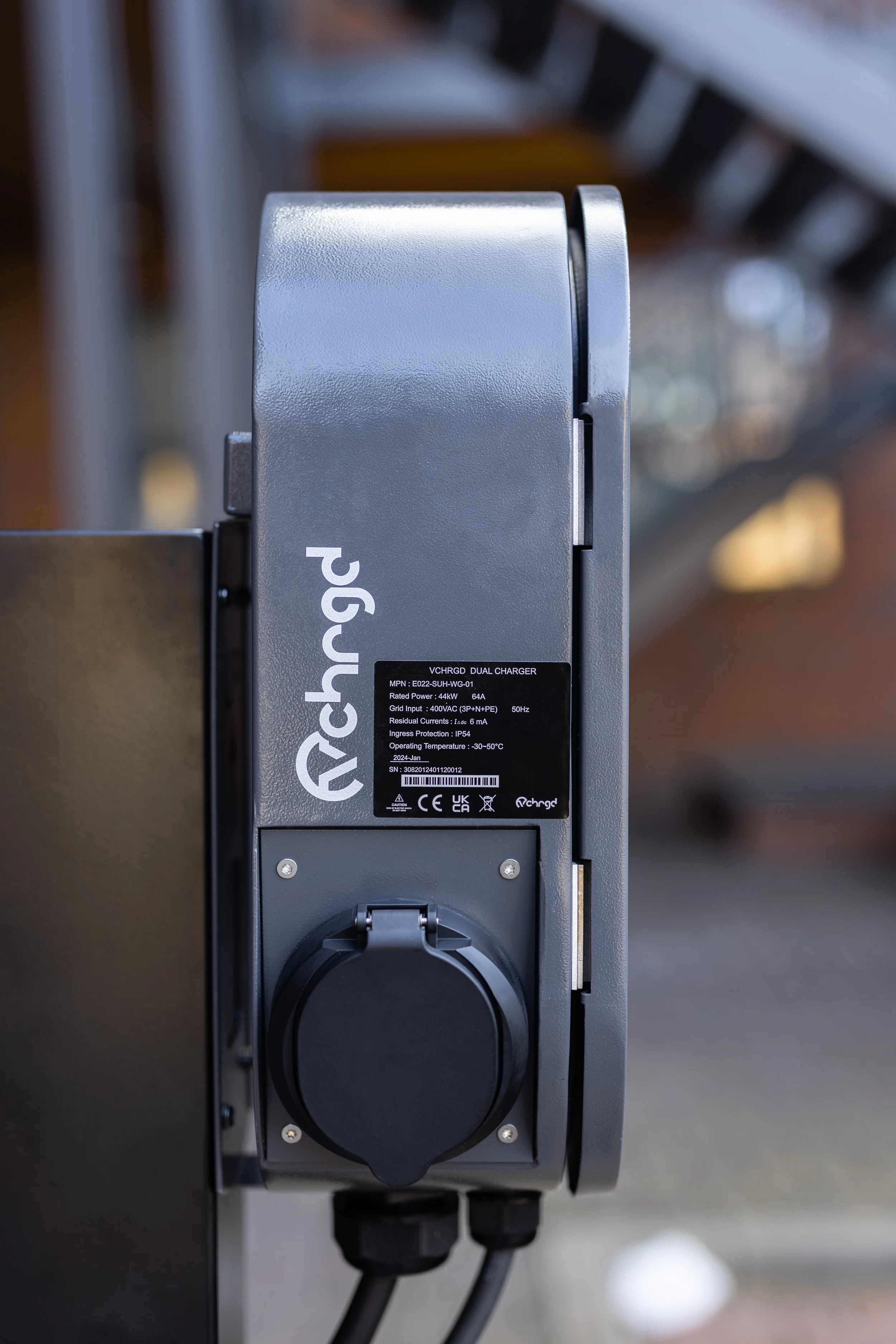

2x Universal Type 2 sockets, high quality connectors with built in flanges for debris & water protection and a secure fit every time
-
Compliant with all UK smart charging standards & encrypted Bluetooth, WiFi, LAN & 4G communications via OCPP1.6J
-

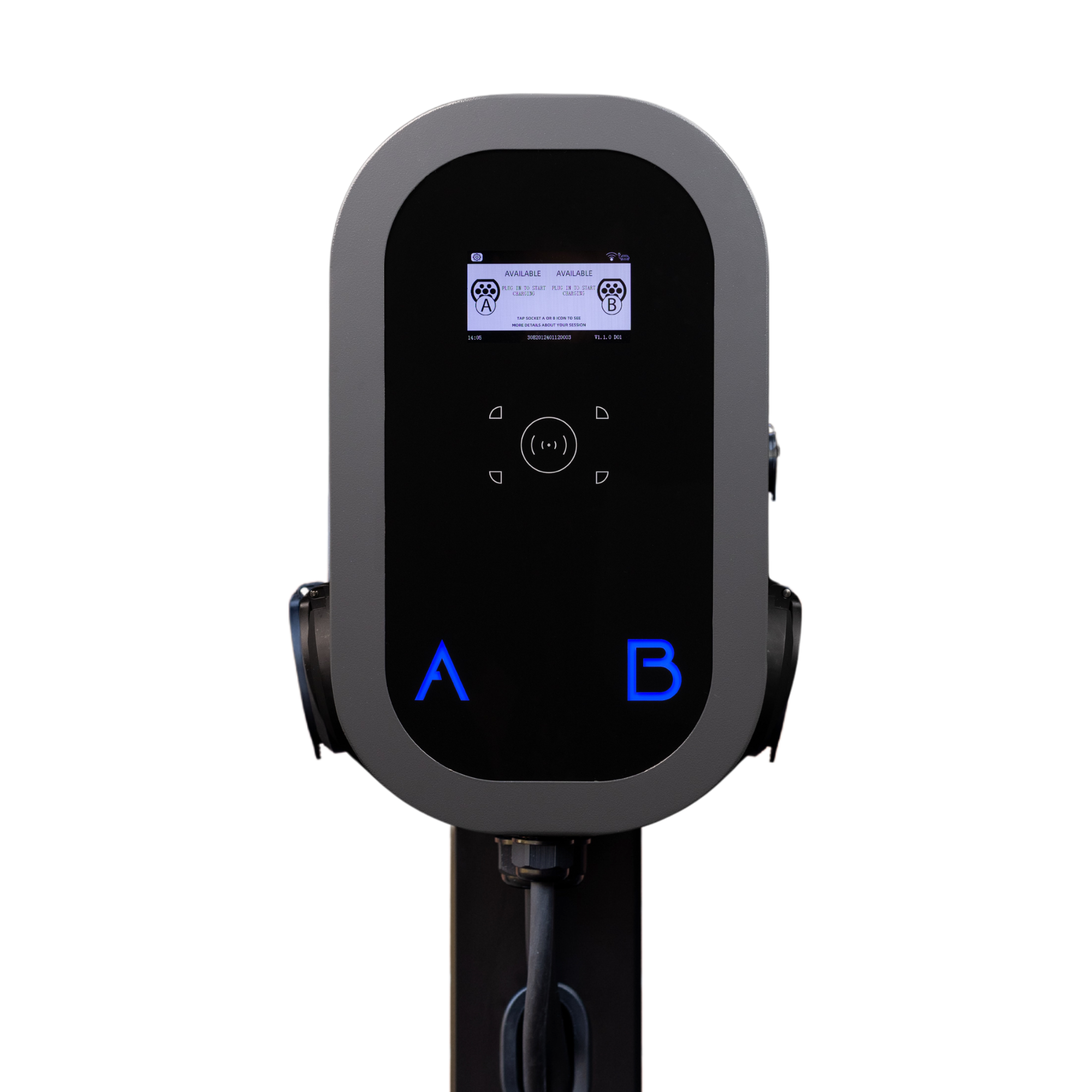

4.3" TFT Touch Screen for on site configuration, customisation, charging information, metrology data and simple commissioning and maintenance
-
Densely packed with features all in one of the industries smallest form factors at 465 x 254 x 135mm
Document Downloads…
Datasheet V1.2
Install Guide 2025

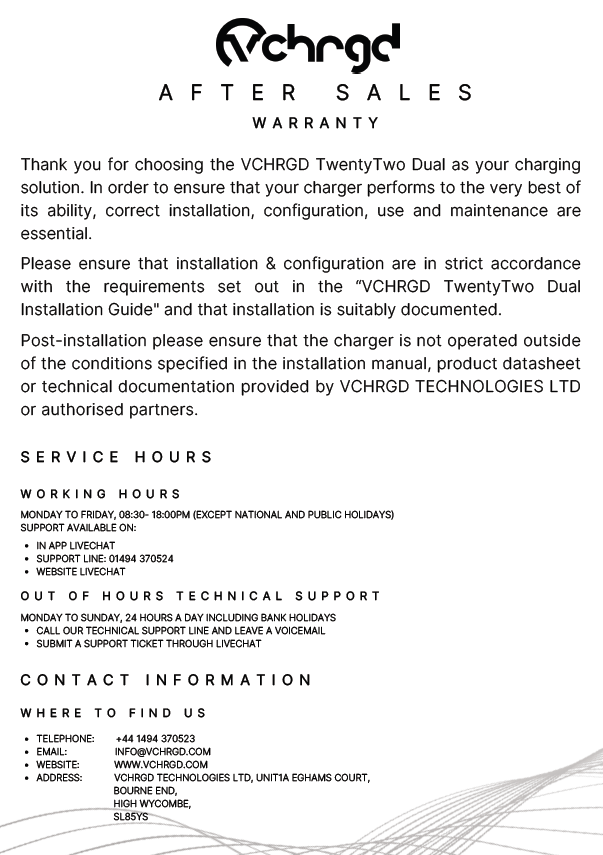

Warranty
Load Balancing Guide
Stay Connected. Stay in Charge.
With OCPP1.6J compatibility the Twentytwo Pro works with a wide range of CPO platforms.
Why not check out a couple of our top picks…
At VCHRGD, workplace charging is more than just plugging in—it’s about powering a smarter, cleaner future. We're driving sustainability with every charge, keeping fleets moving efficiently, and making EV adoption accessible for all. With integrated support for OZEV grant funding and scalable infrastructure tailored to your needs, VCHRGD delivers more than energy—we deliver reliability, simplicity, and progress.
This is workplace charging, redefined. This is VCHRGD.
More than just charging…
-
From compact 7kW chargers to dual-socket 22kW units, VCHRGD offers a full range of hardware to support every workplace — whether you're powering a few bays or a full fleet.
-
Our chargers are fully interoperable with leading back-end platforms, making them ideal for workplace, fleet, and public installations with dynamic integration requirements.
-
Bring your brand to life with bespoke vinyl wraps, printed faceplates, custom screensavers, and fully white-labelled packaging, user guides, and support materials.
We believe in local. Find an installer who will go the extra mile, so you don’t have to.
TwentyTwo Dual Partners
-
![]()
Electricpoint.com
WHOLESALER
-
![]()

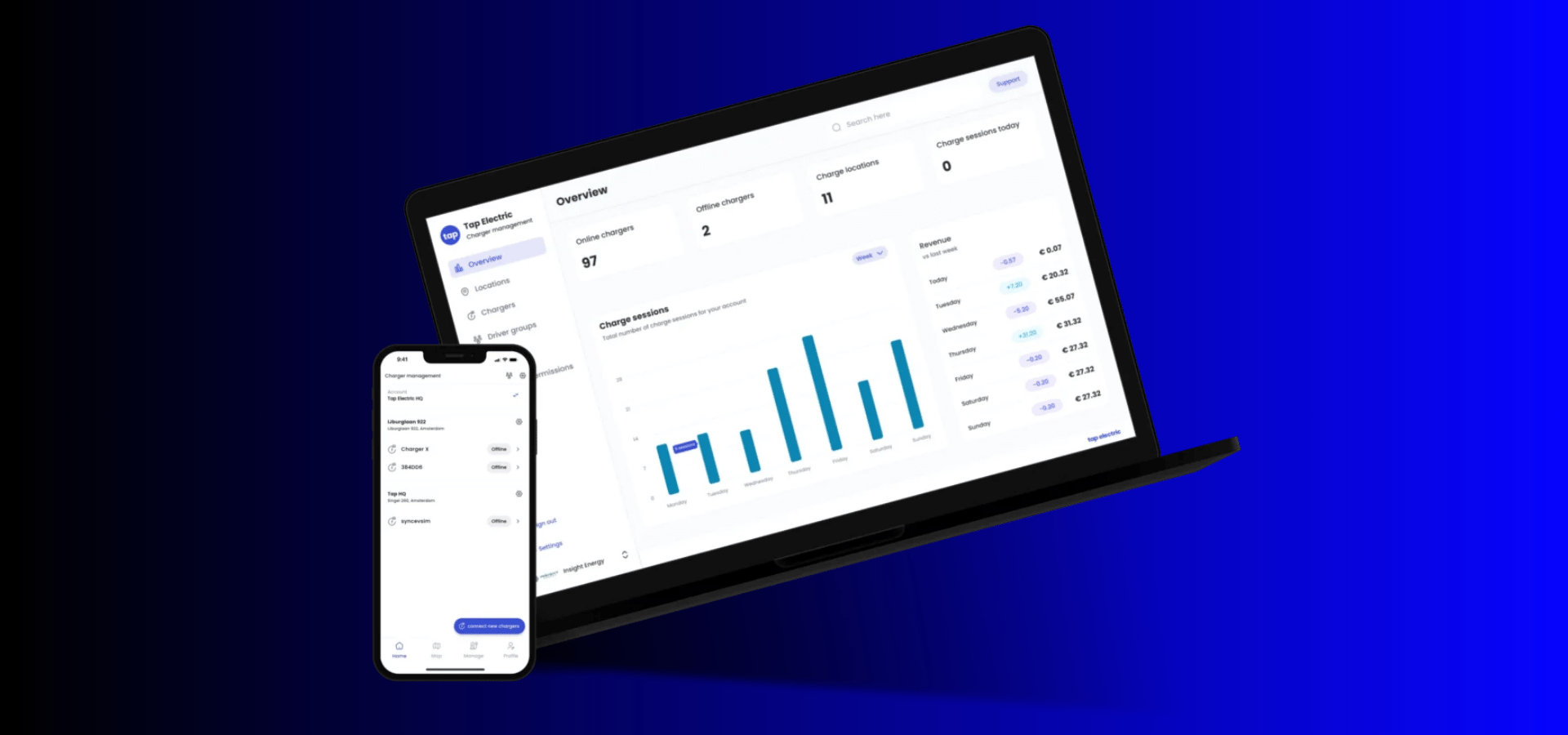

Tap Electric
BACK-END
-
![]()
WEVO Energy
BACK-END
-
![]()

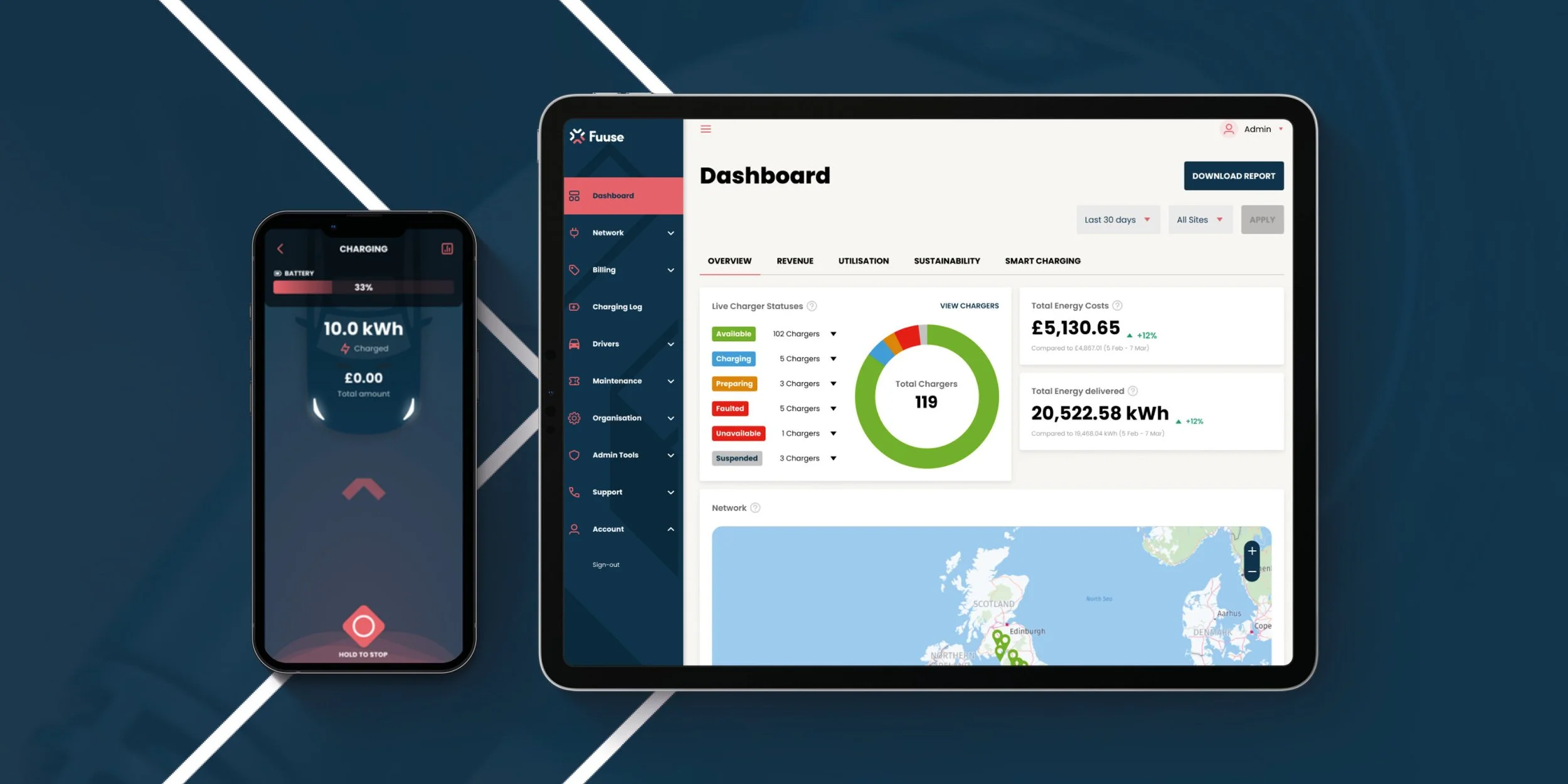

Fuuse
